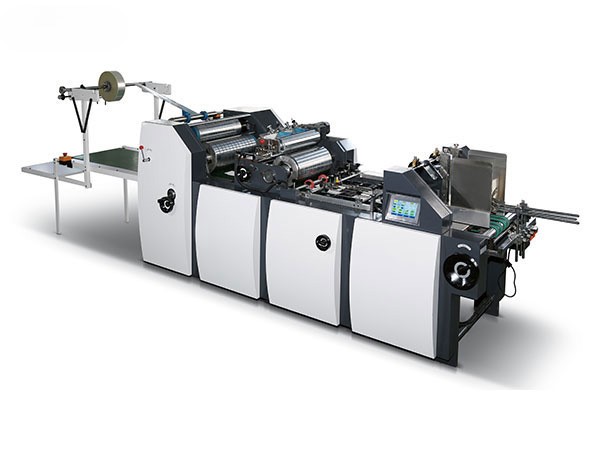

GK-1080T Automatic High Speed window patching machine
GK-1080T Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes.
The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
The choose able structure: Window with intermittent slit
1080T Parameters
| Specification of the machine | |
| Model | GK-1080T |
| Max. Paper Size(mm) | 1080*650 |
| Min. Paper Size(mm) | 140*140 |
| Max. Film Size(mm) | 410*300 |
| Min. Film Size(mm) | 80*60 |
| Film Thickness(mm) | 0.05-0.20 |
| Max. Working Speed | 8000-10000s/h |
| Cardboard | 200-500g/m2 |
| Corrugated Paper | ≤7mm |
| Total Power | 9kw |
| Total Weight | 3000kg |
| Overall Dimensions(mm) | 5000*1960*1750 |
| （When the roller pull out） | 5000*3160*1750 |
| Packaging dimensions (m) | 3.1*2.1*2.2m |
| Container | 20GP |
| Net weight (kg) | 4000kg |
| Gross weight (kg) | 5000kg |
