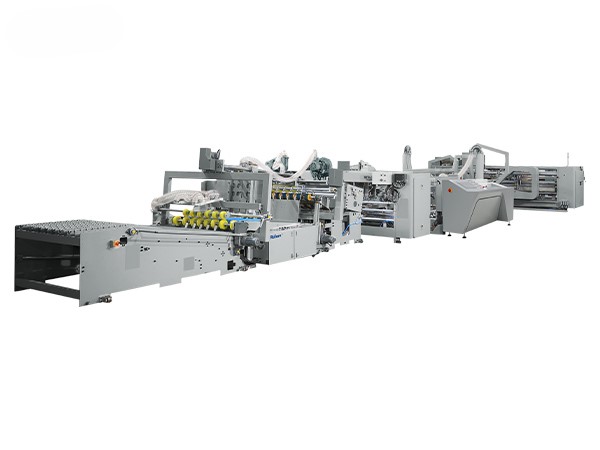

Automatic Folder Gluer Stitcher Machine
Introduction
The biggest feature of this machine is its all electric computer operation, which is easy to operate and balances quality and efficiency, saving manpower and material resources. It has two functions: nailing and pasting. Bottom less and covered cardboard boxes can also be nailed; This machine adopts computer screen display operation and fault instructions:
Can store orders and remember 2000 sets of order data; You can complete the order change setting within 3-5 minutes and start mass production; The paper feeding department adopts a leading edge belt type to ensure that the paper feeding rate is not skewed; Each leading edge paper feeding belt can be adjusted separately to increase its height and prolong its service life; There is a side tapping device during paper feeding to ensure neat and smooth paper feeding; The nail head and shaping section are operated by servo motors, ensuring stable and accurate nail spacing The nail head has an additional shaping function, which ensures that the finished product does not produce scissor forks and is neat without beveled edges; The nail head nail speed can reach 1200 nails per minute; It can be nailed with single or double nails, with a maximum nail spacing of 90mm. It can be nailed with reinforced nails, with a maximum nail spacing of 70mm. Taking three nails as an example, it can reach up to 115 nails per minute; The wire delivery adopts a 30 kilogram automatic wire delivery system; Cardboard that can be nailed with three or five layers of A, B, C, and AB waves; The number of needles can be customized and automatically discharged.
Equipment expandable functions:This model can be equipped with a paste head device, which can choose to nail or paste:The paper feeding section can be equipped with an automatic paper feeder; The counting department can be equipped with an automatic packaging machine; Can be equipped with an automatic labeling machine; Can be equipped with an internal adhesive tape machine; Automatic spray system can be added.
Foundation Drawing
LC-S Parameters
Model | 2400 | 2800 | 3200 |
Applicable corrugated carton | 3, 5,AB layers of corrugated cardboard | ||
Maximum nailing speed | 100 pieces/min (3 nails) | ||
90 pieces/min (4 nails) | |||
80 pieces/min (5 nails) | |||
Maximum box gluing speed | 110 pieces/min | ||
Reinforcing nail | 30-70mm | ||
Head movement pattern | Fixed nail head | ||
Stitching mode | Two nails / one nail | ||
Flat wire is used for driving nails | Width：1.95mm（±0.05mm） | ||
Nail slope | 45° | ||
Supply voltage | 3P 380V 50HZ | ||
Maximum paper width | 2400 | 2800 | 3200 |
Length x width x height | 27x4x2.1m | 27x4.4x2.1m | 27x4.8x2.1m |
Net Weight | 16T | 18T | 20T |
Total power | 55KW | 55KW | 55KW |
Special Features
This machine uses a computer screen to display operation and fault prompts.

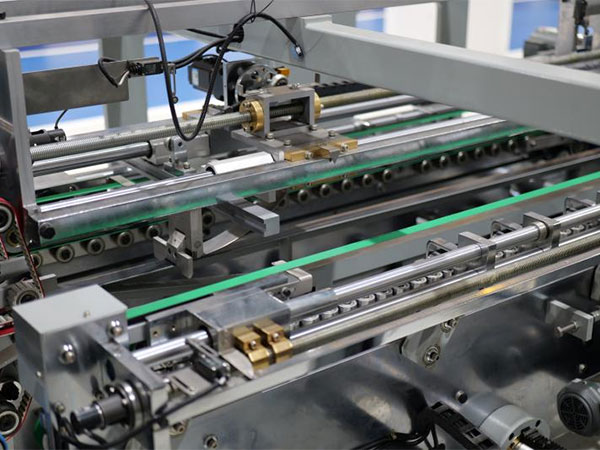

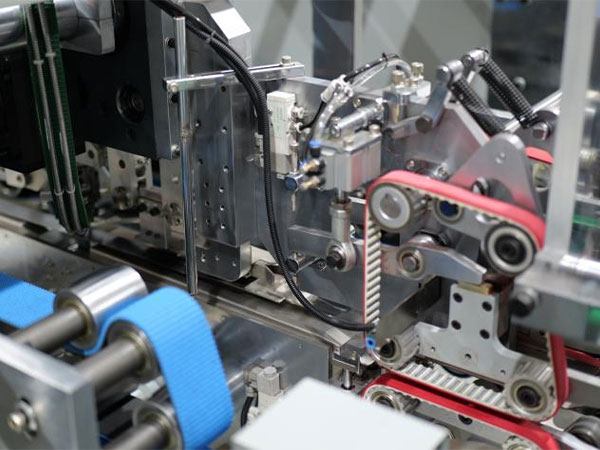

The nail head and shaping part are operated by servo motors, and the nail distance is stable and accurate.
The nail head has an additional shaping function, so the finished product will not produce scissors forks, and it is neat and without bevel edges.
It can also nail boxes without bottoms and lids.

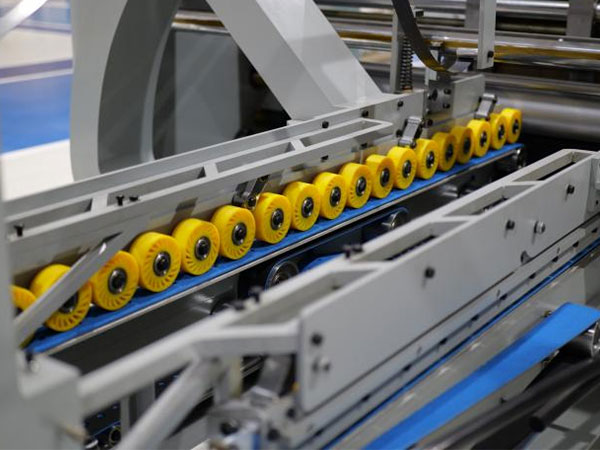

The paper feeding part uses a front edge belt type to feed paper accurately without skewing.
There is a side patting device when feeding paper to make the paper feeding neat and smooth. It can be used for large and small cartons, and can also be connected to an automatic paper feeder.
The size change is operated by computer. The operation screen is located at the main power cabinet. The size can be manually input or called up at the storage order. The size setting of the whole machine can be completed in 3-5 minutes. Each functional size can be positioned with one button (if precise fine-tuning is required, precision fine-tuning can be performed at each functional part), which reduces the operators machine adjustment time, improves efficiency and ensures the safety of the operator, making large-scale production orders more feasible.
Equipped with remote control operation, the operator can operate more flexibly.
Equipped with centralized lubrication device, which is convenient for refueling.
The paper-gluing and paper-collecting part is equipped with a hollow protective cover to prevent the safety of non-operating personnel.
The whole machine has a fast adjustment speed, and the push plate can be positioned with one button. A skilled operator can debug the machine in just 10 minutes.
The nail head nail speed can reach 1,200 nails per minute.
During high-speed production, for example, with three nails, more than 90 finished products can be produced per minute.
Single nails and double rows of nails can be nailed, with a maximum nail distance of 90 mm.
Reinforced nails can also be nailed, with a maximum nail distance of 65 mm.
Orders can be stored, and 2,000 sets of order data can be memorized.
Three-layer or five-layer cardboard (3-8 mm) can be nailed, A, B, C and AB wave cardboard.
Counting discharge can automatically discharge according to the number of sheets that can be customized.
The nail line specifications used are: 0.68-0.72 X 2.0 (standard nail line specifications of the machine head).
Samples Parameters
| Ordinary box type |  | |||
Model | 2400 | 2800 | 3200 | |
A | 220-600 | 220--700 | 220-800 | |
B | 170-600 | 170-700 | 170-800 | |
C | 220-600 | 220-700 | 220-800 | |
D | 170-600 | 170-700 | 170-800 | |
E | 780-2400 | 780-2800 | 780-3200 | |
F | 295-1350 | 295-1350 | 295-1350 | |
Related Products
XL SERIES Automatic High Speed Intelligent 4-6 corner Folder Gluer
XL series Automatic high speed intelligent folding gluing machine combined with new advanced technology,controlled by memory system,it is another masterwork of Zhejiang New Luolan Machinery.Automatic folder gluer machine can store memories of different data of different shapes of boxes,which realizes automatic memory control rocking plate position and increases efficiency and accuracy.
LC-6S Automatic High Speed ( Hook-less belts climbing ) Folder Gluer
Automatic high speed folding gluing machine is another masterwork of Zhejiang New Luolan Machinery. suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes. Intelligent Memory Function Folder Gluer, momory function is an ideal equipment for repeatingdifferent jobs after the first trail with less works . XL-J is suitable for straight-line, double-wall, auto lockbottom, 4 6 corners type folding cartons.
LC-S High Speed Automatic 4 and 6 corner Folder Gluer
Fast job changeover
•Driven by ribbed V belt
•Multi-type work capabilities
LC-7S Automatic High Speed 4 and 6 corner Folder Gluer
The LC-7S has undergone continuous research and development, iteration, and is reflected in its precise, fast, and intelligent order switching, multi-functional configuration, including 90 ° rotation, left and right corner belt pre-folding, automatic lifting and lowering of the folding section, and extended crash bottom section and main folding parts. It has V-ribbed belt drives and can produce single line boxes, box in box boxes, crash bottom boxes, and 4/6 corner boxes.
AS-S Automatic Four Six Corners Folder Gluer
AS-S series box folding gluing machine machine is straight line, lock bottom, 4 & 6 corner cartons and more, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
CS SERIES Automatic High Speed 4 and 6 corner Folder Gluer
Rail width can be horizontally adjusted and set by seven
pieces 30mm thickened feeding belt and 10mm metal board.
Operators can operate feeder switch in any regional.
AS-A Automatic Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
AS-B Automatic Pre-folding Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
AS-C Automatic High Speed Lock Bottom Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
GK-CB Automatic crash lock bottom folder gluer
Series CB model A folding gluing machine is 4-fold bottom-lock machine,adopt synchronous belt transmission and electronic continuously variable speeder,domestic standard electronic components,feeding section adopt mechanic continuously variable,stable and easy to control and operate.It is widely used in food,medicine,cosmetics,stationery and other ordinary cartons,process and glue for all kinds of bottom-locked cartons. Pre-fold section is applied to auto packaging, fold 2 and fold 4 of all cartons can reach 90°and 180°,perfectly combing the requirements of auto packaging together.
GK-A Automatic folder gluer
5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding Continuously Variable Speeder to ensure feeding internal and stable transmission One touch Pneumatic knife, easy for the adjustment of ffeeding belts
GK-B Automatic prefolding folder gluer with 2 guns
5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding Continuously Variable Speeder to ensure feeding internal and stable transmission One touch Pneumatic knife, easy for the adjustment of ffeeding belts
GK-BA Automatic prefolding folder gluer
Series BA Two folds folding gluing machine is Pre-fold machine, adopt synchronous belt transmission and electronic continuously variable speeder ，domestic standard electronic components，feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together.
PC SERIES Automatic High-Speed Folder Gluer
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment
PC SERIES Automatic High-Speed Bottom Lock Folder Gluer
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment
PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer
Feeding belts equipped with the function of air suction
Equipped with new type of feeding knife. You can adjust them according to the box shapes.
With special pushing teeth function, easy to adjust the backing board.
Vibration device coordinate with motor which helps machine consecutive and automatic feeding quickly and simply
SP SERIES Automatic Double Splicing Folding Gluing Machine
The fully automatic dual splicing box machine adopts an upper and lower paper output mechanism. The upper paper output mechanism breaks the traditional belt friction force due to the upward printing surface of the cardboard box. For products with high requirements such as laminating film, the paper output is prone to scratching, which is a pain point in the industry. In response to industry pain points, we have innovatively developed a new downward suction Feida paper feeding mechanism.
AC SERIES Automatic High-Speed Folder Gluer
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment more convenient and stable.baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.
AC SERIES Automatic High-Speed Bottom Lock Folder Gluer
board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box. Bottom-folding speed is 50-200 pcs per min, stable and reliable.
QH Series Heavy Duty Folder Gluer
QH Series heavy duty folder gluer is suitable for 4/6 corners/crash lock bottom/staight-line type carton gluing folding. Each section is driven by servo motors and liner guide adjustment,which make machine working more smooth and stable comparing with traditional main motor driving and slides adjustment.With separate unit for secondary-creasing,OH meet 3ply and 5ply cartons folding requirement perfectly.Secondary-Creasing can align the fish tail of cartons due to different reasons sush as improper die cutting and creasing,etc.
GK-650T Automatic High Speed window patching machine
GK-650T Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box.gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing,film patching ,film cutting and paper collection before folding boxes. The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
TC-700 Automatic Window Patching Machine
TC-700 Automatic Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes.
The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
GK-1080T Automatic High Speed Double Channel window patching machine
GK-1080T Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes.
The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
XY800 Automatic Corner Cutting window patching machine
XY800 Corner cutting Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box.gift box.napkin box.cosmetic box etc.It can also realize the function of the paper gluing,film patching,film cutting and paper collection before folding boxes.The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
GK-1080T Automatic High Speed window patching machine
GK-1080T Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes.The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard. The choose able structure: Window with intermittent slit
XY1100-S Automatic Window Patching Machine(With Full Servo Motor System
XY-1100-S corner cutting Window Patching Machine is a fully servo machine which is our newly designed these years. The machine widely used in the film patching to be package with or without the window of the wine box, gift box, napkin box, cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes.
Plassma device
To ensure a firm bond,the surface of the product requires excellent adhesuon to achieve the desired results.
Plasma surface treatment in KQ can help the surface of material gain 40min/m surface energy,so as to increase the standard cold glue sticking ablilty.
GK-450 Automatic Box Stacker
Stacker is a kind of unique multi-purpose tool that can be used to folding the carton,and to make the packaging more easy.Its operation is simple and humanized design can use for almost all types of carton packaging.We make paste box machine production line speed increased to 10 million boxes/hours packing of only the two people,excellent quality of cast a lasting benefits! Main application range
4 Channels System
KQ cold glue system has the characteristics of high efficiency, flexibility, good stability and easy maintenance The best partner of folder gluer,folding machine and corrugated box machine,is important for carton boxes,four or six corner boxes,hamgurger boxes,folding,file bags,introductions,envelops and other paper products.

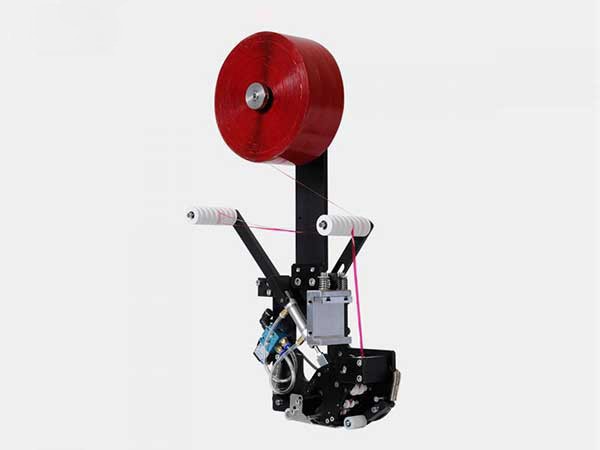

Double-side machine
Innovative double-sided adhesive technology,can adapt to most of the models of double-sided tape,cut off the use of model,will not cause damage to the product itself,double-saded tape incision for the tooth mouth,according to the actual situation,with double-sided tape device.

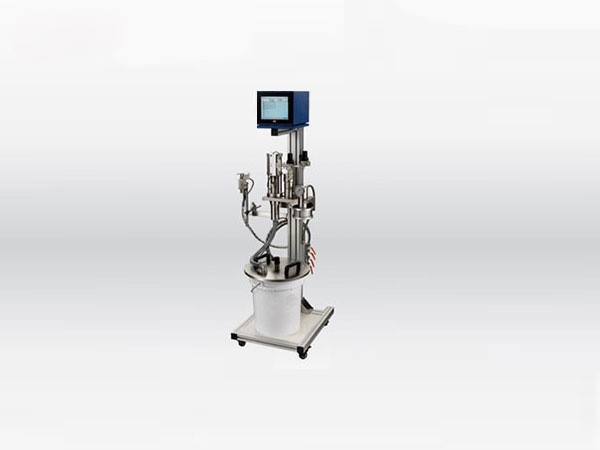

Spraying system
Equipped with three guns, convenient in the Production of 4/6 corner box and various special-shaped box,gluing quickly and accurately sizing.

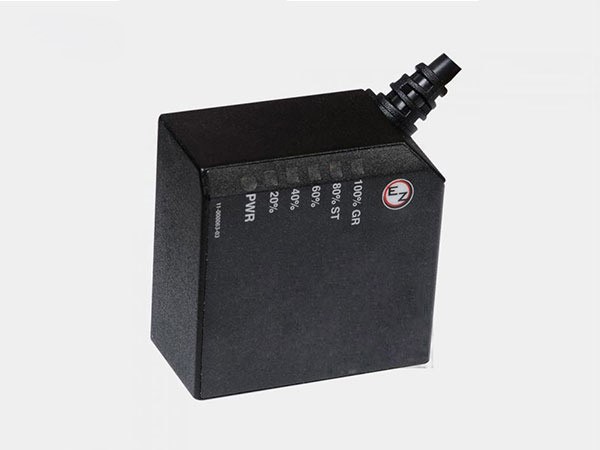

Bar Code System
