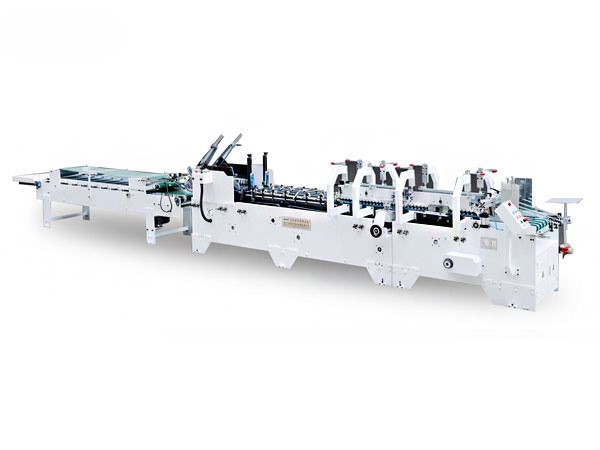

GK-BA Automatic prefolding folder gluer
Series BA Two folds folding gluing machine is Pre-fold machine, adopt synchronous belt transmission and electronic continuously variable speeder ，domestic standard electronic components，feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together.
| Name | GK-BA Automatic High-Speed Pre-Fold Gluer Folder | |
| model | GK-650BA | GK-780BA |
| Paper Material | Cardboard 210-800g | |
| Max. Liner speed | Max. 220 meter/minute | |
| Feeding way | Automatically and continuously feeding | |
| Way of folding | Fold 1 and fold 3 are 180°, | |
| fold 2 and fold 4 are 90°and 180° | ||
| Glue Material | Water-base cold glue | |
| Electric power | 6.0kw 380v | 6.0kw 380v |
| Weight | 2.0T | 2.5T |
| Over dimension | 7.5x1.3x1.45m | 7.5x1.45x1.45m |
Samples
GK- BA Equipment (Applicable for cardboard)
| Common type and size |  | ||
| Model | 650Type | 780Type | |
| A | 75-650 | 75-780 | |
| B | 60-650 | 60-780 | |
| C(Min) | 35 | 35 | |
Related Products
XL SERIES Automatic High Speed Intelligent 4-6 corner Folder Gluer
XL series Automatic high speed intelligent folding gluing machine combined with new advanced technology,controlled by memory system,it is another masterwork of Zhejiang New Luolan Machinery.Automatic folder gluer machine can store memories of different data of different shapes of boxes,which realizes automatic memory control rocking plate position and increases efficiency and accuracy.
LC-6S Automatic High Speed ( Hook-less belts climbing ) Folder Gluer
Automatic high speed folding gluing machine is another masterwork of Zhejiang New Luolan Machinery. suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes. Intelligent Memory Function Folder Gluer, momory function is an ideal equipment for repeatingdifferent jobs after the first trail with less works . XL-J is suitable for straight-line, double-wall, auto lockbottom, 4 6 corners type folding cartons.
LC-S High Speed Automatic 4 and 6 corner Folder Gluer
Fast job changeover
•Driven by ribbed V belt
•Multi-type work capabilities
LC-7S Automatic High Speed 4 and 6 corner Folder Gluer
The LC-7S has undergone continuous research and development, iteration, and is reflected in its precise, fast, and intelligent order switching, multi-functional configuration, including 90 ° rotation, left and right corner belt pre-folding, automatic lifting and lowering of the folding section, and extended crash bottom section and main folding parts. It has V-ribbed belt drives and can produce single line boxes, box in box boxes, crash bottom boxes, and 4/6 corner boxes.
AS-S Automatic Four Six Corners Folder Gluer
AS-S series box folding gluing machine machine is straight line, lock bottom, 4 & 6 corner cartons and more, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
CS SERIES Automatic High Speed 4 and 6 corner Folder Gluer
Rail width can be horizontally adjusted and set by seven
pieces 30mm thickened feeding belt and 10mm metal board.
Operators can operate feeder switch in any regional.
AS-A Automatic Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
AS-B Automatic Pre-folding Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
AS-C Automatic High Speed Lock Bottom Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
GK-CB Automatic crash lock bottom folder gluer
Series CB model A folding gluing machine is 4-fold bottom-lock machine,adopt synchronous belt transmission and electronic continuously variable speeder,domestic standard electronic components,feeding section adopt mechanic continuously variable,stable and easy to control and operate.It is widely used in food,medicine,cosmetics,stationery and other ordinary cartons,process and glue for all kinds of bottom-locked cartons. Pre-fold section is applied to auto packaging, fold 2 and fold 4 of all cartons can reach 90°and 180°,perfectly combing the requirements of auto packaging together.
GK-A Automatic folder gluer
5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding Continuously Variable Speeder to ensure feeding internal and stable transmission One touch Pneumatic knife, easy for the adjustment of ffeeding belts

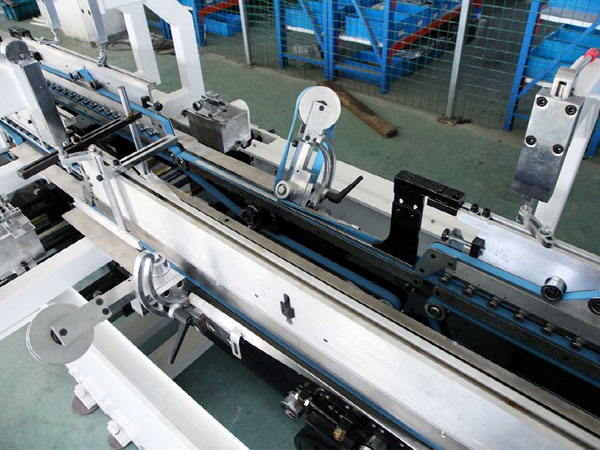

GK-B Automatic prefolding folder gluer with 2 guns
