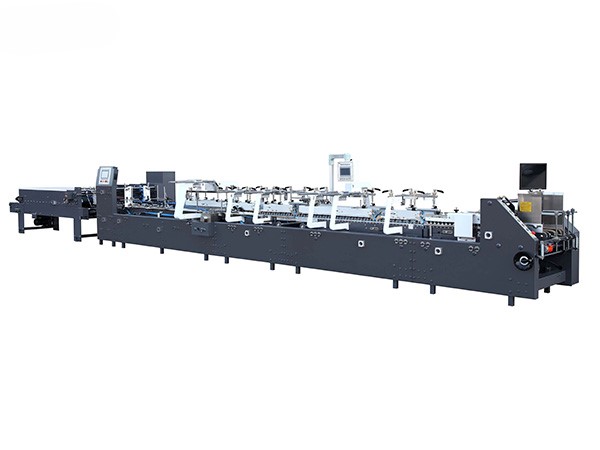

AS-S Automatic Four Six Corners Folder Gluer
AS-S series box folding gluing machine machine is straight line, lock bottom, 4 & 6 corner cartons and more, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
AS-S Introduction
AS-S series box folding gluing machine machine is straight line, lock bottom, 4 & 6 corner cartons and more, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons. (We can customize of other size).
AS-S Technical Parameters
MODEL | 650 | 800 | 1100 |
Paper material | Cardboard 210-800gsm, E/N/F Flute | ||
Max. speed | 400m/min | ||
Max .thickness of folded box | 12mm | ||
Way of folding | Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180° | ||
Power supply | 3P 380V 50HZ | ||
Blank width | 650mm | 800mm | 1100mm |
Length x Width x Height | 13.5x1.5x1.45m | 13.5x1.65x1.45m | 13.5x2.0x1.45m |
Net Weight | 5.5T | 6.5T | 7.5T |
Total power | 16kw | 16kw | 17kw |
Samples Parameters
Straight Line Box | | |||
Model | 650Type | 800Type | 1100Type | |
Way of folding | Two carriers | Two carriers | Two /three carriers | |
B+C+D+E | 130-650 | 130-800 | 130/280-1100 | |
C+D | 65 | 65 | 65/140 | |
E(Min) | 30 | 30 | 30 | |
E(Max) | 500 | 500 | 500 | |
F | 70-800 | 70-800 | 70-800 | |
G(Max) | 800 | 800 | 800 | |
Prefolding | ||||
D+E(Max) | 300 | 300 | 300 | |
G（Max） | 500 | 500 | 500 | |
（Final folding by one carrier:B+C+D+E mini feeding width 75mm）
Crash Lock Bottom Box |
| |||
Model | 650Type | 800Type | 1100Type | |
Way of folding | Two carriers | Two carriers | Two /three carriers | |
B+C+D+E | 130-650 | 130-800 | 130/280-1100 | |
C+D | 65 | 65 | 65/140 | |
E(Min) | 30 | 30 | 30 | |
E(Max) | 500 | 500 | 500 | |
F | 70-800 | 70-800 | 70-800 | |
G(Max) | 800 | 800 | 800 | |
H(Min) | 25 | 25 | 25 | |
L | 30-100 | 30-100 | 30-100 | |
4 Corners Box |
| |||
Model | 650Type | 800Type | 1100Type
| |
Way of folding | Two carriers | Two carriers | Two /three carriers | |
A+B+C | 160-650 | 160-800 | 160-1100 | |
B(min) | 90 | 90 | 90 | |
F | 70-800 | 70-800 | 70-800 | |
G(max) | 800 | 800 | 800 | |
H(min) | 25 | 25 | 25 | |
L | 30-100 | 30-100 | 30-100 | |
6 Corners Box | | |||
Model | 650Type | 800 Type | 1100 Type
| |
Way of folding | Two carriers | Two carriers | Two/three carriers | |
A+B+C+D+E | 260-650 | 260-800 | 260/310-1100 | |
B+C(min ) | 80 | 80 | 80/140 | |
B(min) | 80 | 80 | 80 | |
C(min) | 30 | 30 | 30 | |
D(min) | 70 | 70 | 70 | |
F | 70-800 | 70-800 | 70-800 | |
G(max) | 800 | 800 | 800 | |
H(min) | 25 | 25 | 25 | |
L | 30-100 | 30-100 | 30-100 | |
