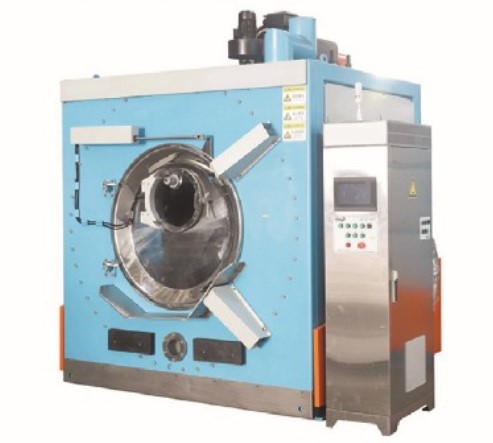

Washing and dyeing machine special for denim
Advantages & Features
High speed can reach 500 rpm with dynamic balance system
With 100 rpm dewatering function, no water dropping on the floor to ensure the production line clean
Fully automatic controlling system, labor-saving and improve washing quality
With optional spray system to lower liquid ratio and higher washing quality
Unique dosing charging design to control the chemicals to enter the drum even and slow to improve even washing quality and even dosing capacity
The machine itself can weigh the volume of water necessary for each process according to the load weight (kg)/liquor ratio volume programmed to lower the risk of misoperation of water inlet
Model Loading capacity (KG) Drum Volume (L) Variable speed (RPM) LWH (mm) Installed power (KW) JZ-AW-10 5-8 200 3-110 1050*1350*1700 3.3 JZ-AW-20 8-15 706 3-110 1760*1700*1900 6 JZ-AW-120 50-70 1360 3-110 2150*2170*2510 14 JZ-AW-280 120-160 2500 3-110 2600*2450*2600 19 JZ-AW-400 180-230 3800 3-110 2800*2980*2900 26 JZ-AW-510 220-280 4900 3-110 3100*2980*2900 35 JZ-CW-420 180-250 4285 3-500 2920*3050*3020 45.5 JZ-CW-510 220-280 5100 3-500 3310*3050*3080 46.5
Related Products
Query successful Washing and Dyeing Machine Special for Fabric Pieces
High quality variable motor with dynamic balance system, adjustable speed can reduce ties and knots.
High stable dyeing effect and high replicability.
Fully automatic control system, labor-saving and improve dyeing effect.
Washing and Dyeing Machine Special for Garment
High speed can reach 500 RPM with dynamic balance system.
With 100 RPM dewatering function, no water dropping on the floor to ensure the production line clean.
Fully automatic controlling system, labor-saving and improve washing quality.
Washing and dyeing machine especial for socks
High speed can reach 500 RPM with dynamic balance system.
Even stable dyeing effect and high replicability; inner drum special polish treatment reduces damage of snagging, pilling and shrinkage.
Washing and dyeing machine especial for seamless underwear
High speed can reach 500 RPM with dynamic balance system.
Even, stable dyeing effect and high replicability. Inner drum special polish treatment reduces damage of snagging, pilling and shrinkage.
Jet system
Jet system can be applied into denim washing and garments dyeing machine. With this function, the liquid ratio will be reduced and more interaction between water, chemical and garments. The processing time is also short-ened. With Spray function, it will be more efficient, energy-saving and environment- friendly.
Ozone system
Ozone system is mainly used in denim washing machine, with ozone system. The denim can be washed in water and in air, which can achieve unique artistic effects.
